※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 100,000 cycles | |
| TRAVEL | 0.25mm±0.1mm | |
LED SPECIFICATIONS | ||||||
| Part Number | Color | Dominant
Wave length (Unit:nm,IF=20mA) | Luminous
intensity (Unit:mcd,IF=20mA) | Forward Voltage (Unit:V,IF=20mA) | Viewing Angle 2θ 1/2 | |
| Typical | Typical | Typical | Max | |||
| DL01B01 | Red | 621 | 1200 | 2.0 | 2.3 | 35 |
| DL01J01 | Yellow | 590 | 1200 | 2.0 | 2.3 | 35 |
| DL01K01 | Orange | 605 | 1000 | 2.0 | 2.4 | 30 |
| DL01D01 | Blue | 460 | 200 | 3.0 | 3.2 | 60 |
| DL01C01 | Green | 522 | 1800 | 3.0 | 3.4 | 35 |
| DL01E01 | White | 1200 | 3.2 | 3.6 | 35 | |
TSL06131-0030
Swipe left and right more
※ TSL06131-0030
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |

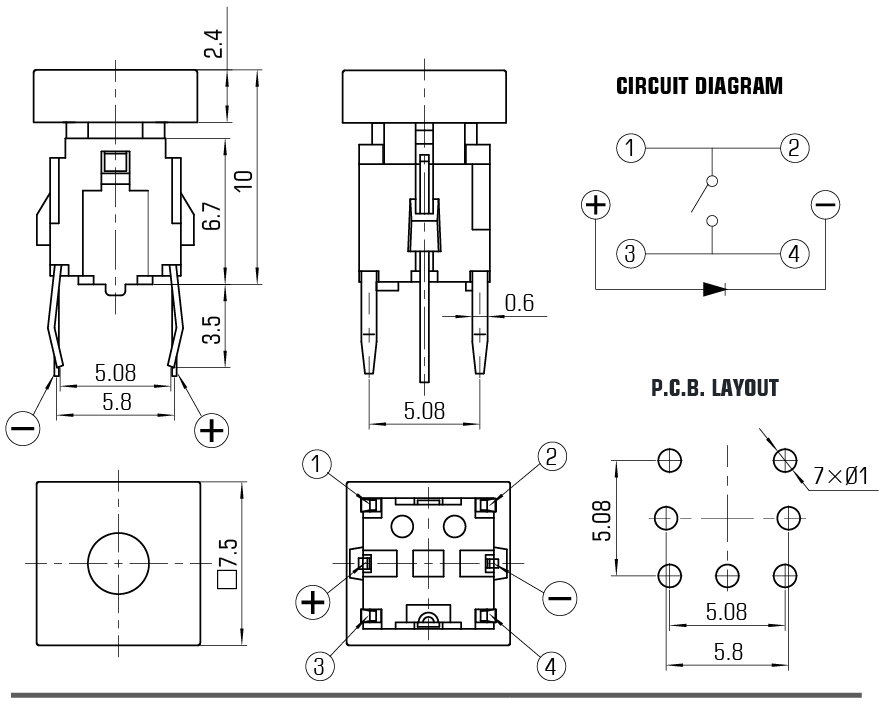

※ DIAGRAM
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 100,000 cycles | |
| TRAVEL | 0.25mm±0.1mm | |
LED SPECIFICATIONS | ||||||
| Part Number | Color | Dominant
Wave length (Unit:nm,IF=20mA) | Luminous
intensity (Unit:mcd,IF=20mA) | Forward Voltage (Unit:V,IF=20mA) | Viewing Angle 2θ 1/2 | |
| Typical | Typical | Typical | Max | |||
| DL01B01 | Red | 621 | 1200 | 2.0 | 2.3 | 35 |
| DL01J01 | Yellow | 590 | 1200 | 2.0 | 2.3 | 35 |
| DL01K01 | Orange | 605 | 1000 | 2.0 | 2.4 | 30 |
| DL01D01 | Blue | 460 | 200 | 3.0 | 3.2 | 60 |
| DL01C01 | Green | 522 | 1800 | 3.0 | 3.4 | 35 |
| DL01E01 | White | 1200 | 3.2 | 3.6 | 35 | |
