※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC500V for 1 Minute | |
| LIFE EXPECTANCY | 100,000 cycles | |
| TRAVEL | 1.5mm±0.2mm | |
SK01
Swipe left and right more
※ SK01
| Funtion: | ON-OFF |
| Contact Arrangement: | SPDT |
| Termination: | SMD version |

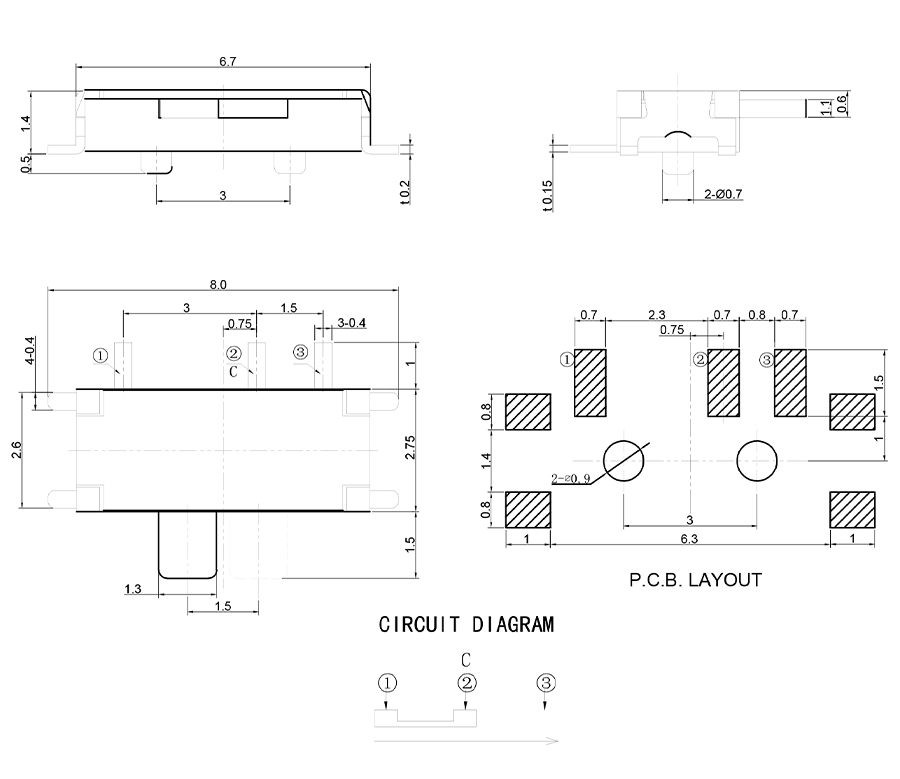

※ DIAGRAM
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC500V for 1 Minute | |
| LIFE EXPECTANCY | 100,000 cycles | |
| TRAVEL | 1.5mm±0.2mm | |
