※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 10,000 cycles | |
| TRAVEL | 1.5mm±0.3mm | |
PS081-06
Swipe left and right more
※ PS081-06
| Funtion: | Lock / Non-Lock |
| Contact Arrangement: | DPDT |
| Termination: | THD version |

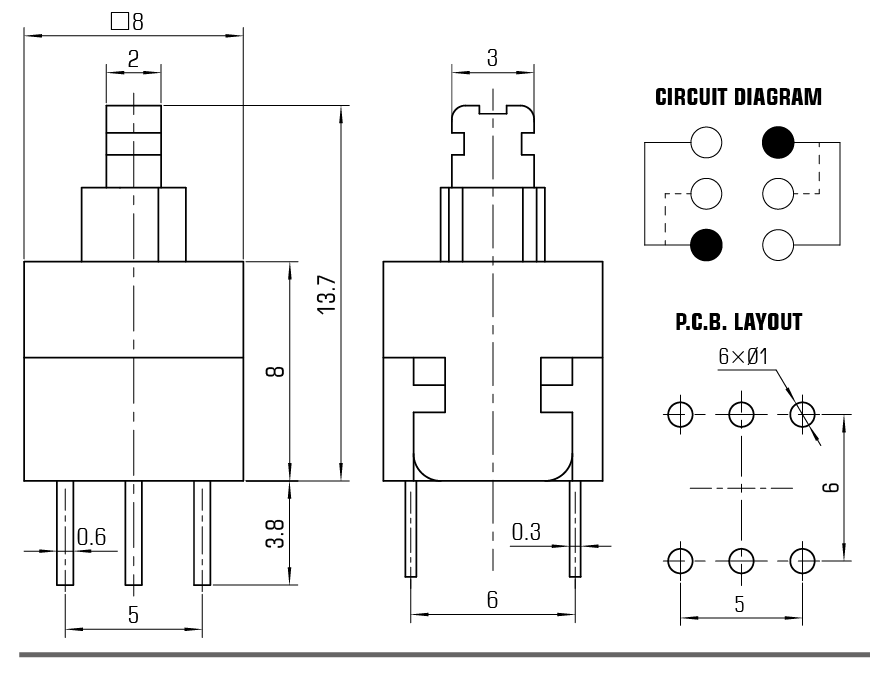

※ DIAGRAM
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 10,000 cycles | |
| TRAVEL | 1.5mm±0.3mm | |
